Accessories

October 15, 2014   Beneficiaries

The Leakshooter comes in a sturdy silver case, complete with headset, charger, USB cable plus software.

LKS1000 Case











Leakshooter plus standard equipment in Silver case

The Leakshooter also has a customised cover and a carry strap, which is hung around the neck. This is ideal for the user when working for long spells with the leakshooter. There is then NO possibility of dropping the leakshooter.

LKS100 Holster









Leakshooter in holster and strap (This item is now included as standard equipment)

The Flex probe is ideal when you are working in awkward areas where you have difficulty in accessing very small connectors. The flexible 400 mm sensor may be used with both function AUTO or MANUAL. The best way to find the leak is to use the flexible probe and then the camera to take a picture of your leak.

LKS Flex

The Flexprobe

The LKS PROBE Contact probe is specifically used for steam trap and mechanical applications (worn bearings, gears, etc). The LKS contact probe can be used to check steam traps and quickly hear internal flow through steam traps and valves. With the probe it is possible to detect anomalies (permanent leak of steam for example). Once again, when the defect is detected, you can take a picture and insert it in your report.

LKS Probe

The Contact probe

  LKS-contact-probe-working









leakshooter checking for mechanical malfunctions using the contact probe

Multi Ultrasonic Transmitter (LKS1 Dome)

  • Multi ultrasonic dome emitter for Integrity & Tightness & Sealing control of:
    •  Tank, container… (Storing liquid or gas fluids)
    • Door, window, frame, seals, … (Building applications)
    • Porthole, window, door, windshield, seals… (Aeronautic, automotive, marine/nautical…)
  • Compatible with the LEAKSHOOTER LKS 1000 leak detection camera
  • Built-in magnets for attaching to steel panelling or to a tripod
  • Visual and audible alarm for Low battery indication
  • 2x high/low power level (130-110 dB)
  • 13x Bi-ultrasonic emitter system 40 kHz for optimal results
  • 3 YEARS warranty



DOME3

Multi Ultrasonic Transmitter LKS 1 Dome

Technical data:

LKS DOME1 Transmitter

  • Weight: 475g
  • 13 emitters giving Omni-directional ultrasound emission
  • High Power Output: 130 dB @ 40KHz
  • Low Power Output: 100 dB @ 40KHz
  • On/Off Control
  • Built-in magnets for attaching to steel panelling or tripod
  • Power Supply: 6 x AA alkaline batteries
  • Battery Life: 25 hours of operation
  • Dimensions: 190 x 100 x 60mm (max)
    • in leather case: 220 x 120 x 80mm (max)
  • Storm proof leather case to IP66, designed to protect if dropped
  • Neck strap for hands-free use

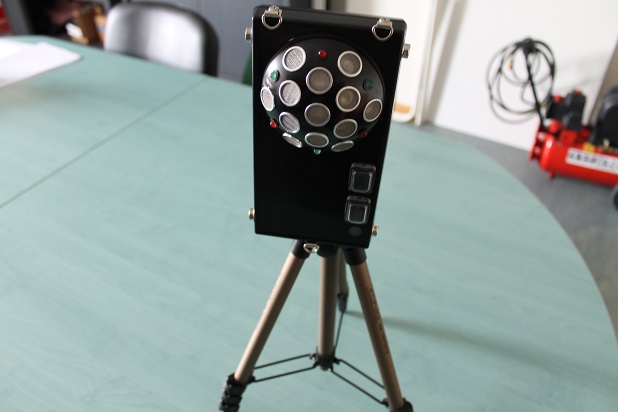

LKS DOME1 Transmitter with stand

DOME2

Multi Ultrasonic Transmitter complete with stand

DOME1
